| Place of Origin: | Shangdong Province |
|---|---|
| ブランド名: | MCLLROY |
| 証明: | ISO/CE |
| Model Number: | FD30T |
| Minimum Order Quantity: | 1 SET |
| 価格: | 4500-6500 USD |
| Packaging Details: | bubble cotton，fixed fasten package |
| Delivery Time: | 5-8 working day |
| Supply Ability: | 300 SETS/MONTH |
| Rate Loading Weight: | 3000 KG | Mast Stage: | 2 Normal /2 Fully free/3 Fully free |
|---|---|---|---|
| Lifting Height: | 3000/4000/4500/5000/6000/6500mm | Engine Model: | XinChai 490 BPG/Mitsubishi S4S/Isuzu C240 |
| Rate Power: | 36.8/35.3/35.4 KW | Transimission: | Hydraulic Manual /Auto 2R，0，2F |
| Fork Size: | 920/1070/1220/1500 mm | Tire Type: | Air / Solid |
| Front Tire: | 12-16.5-10PR | Rear Tire: | 12-16.5-10PR |
| Overhead Guard Height: | 2450 mm | Overall Length: | 3090mm without fork |
| Overall Width: | 1600 mm | Overall Height: | 4350mm |
| 総重量: | 4900kg | マストの傾斜角: | 6°/12° |
| 負荷センター: | 500MM | 最低地空 (荷乗なし): | 250mm |
| 車輪ベース: | 1840 mm | ホイール トラック: | 後ろ: 1320 mm |
| Minimum Turning Radius: | 3960 mm | Max.Travel Speed(no-loading): | 30 km/h |
| Max. Lifting Speed(full/no-Loading): | 450 / 550 mm/s | Max. Descending Speed: | Full-loading ≤ 600 mm/s No-loading ≥ 300 mm/s |
| ハイライト: | ストック可視性 フォークリフト,全地形フォークリフト,備蓄の精度 フォークリフト |
||

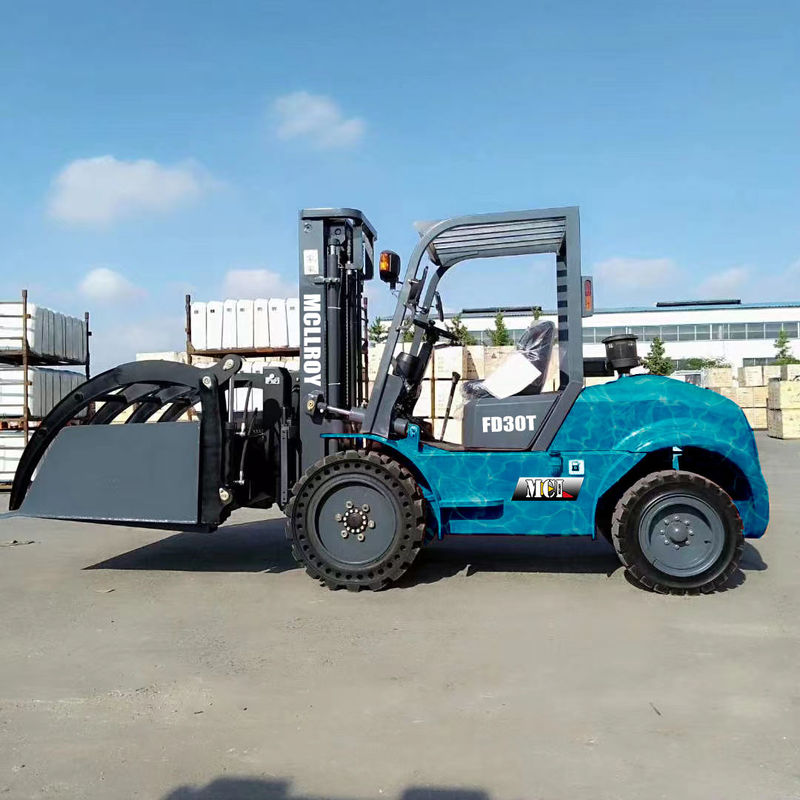

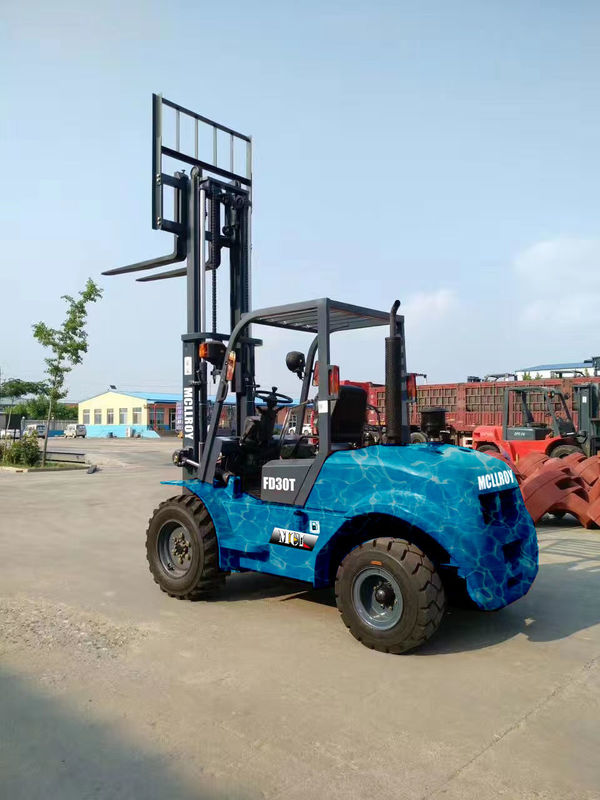

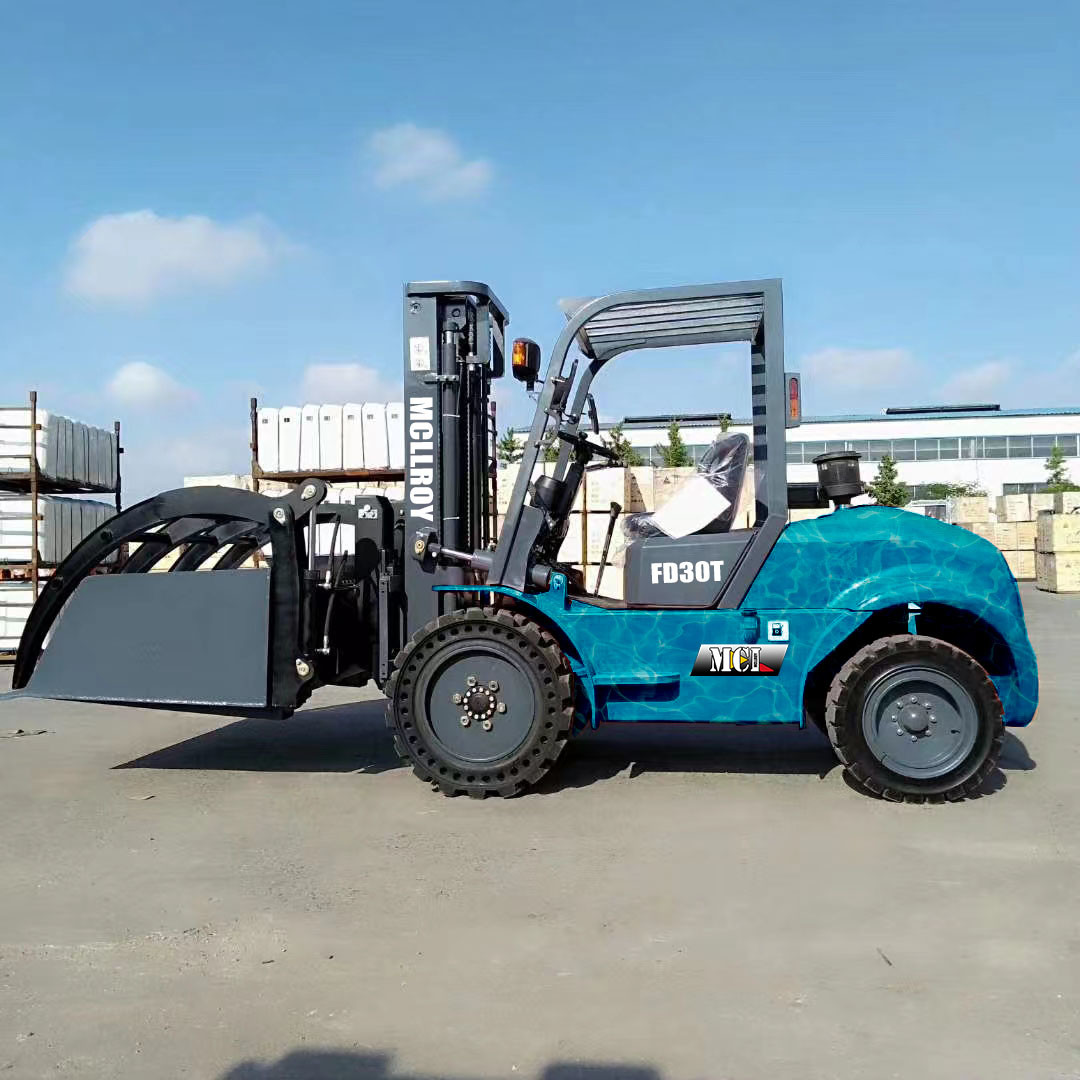

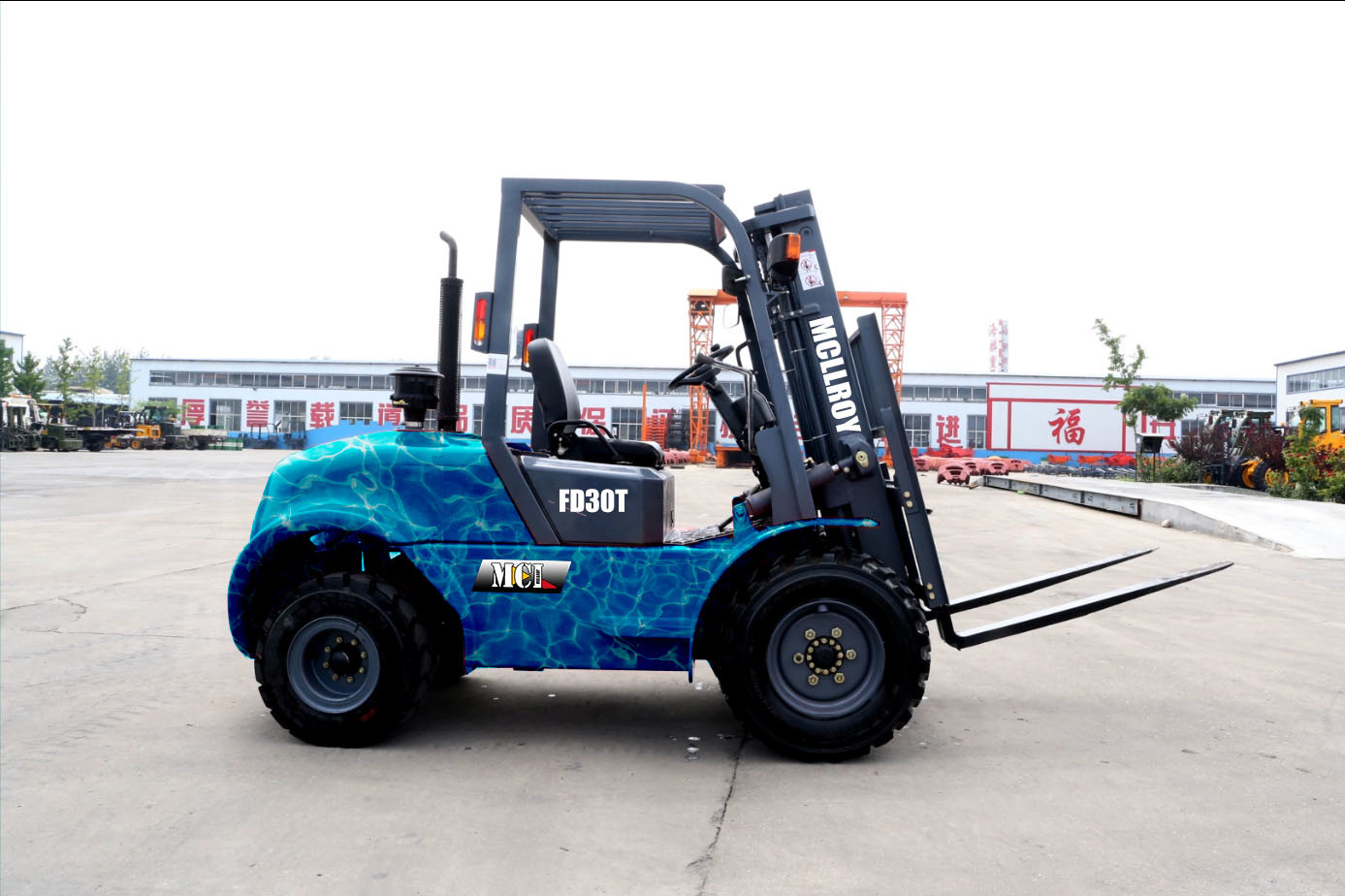

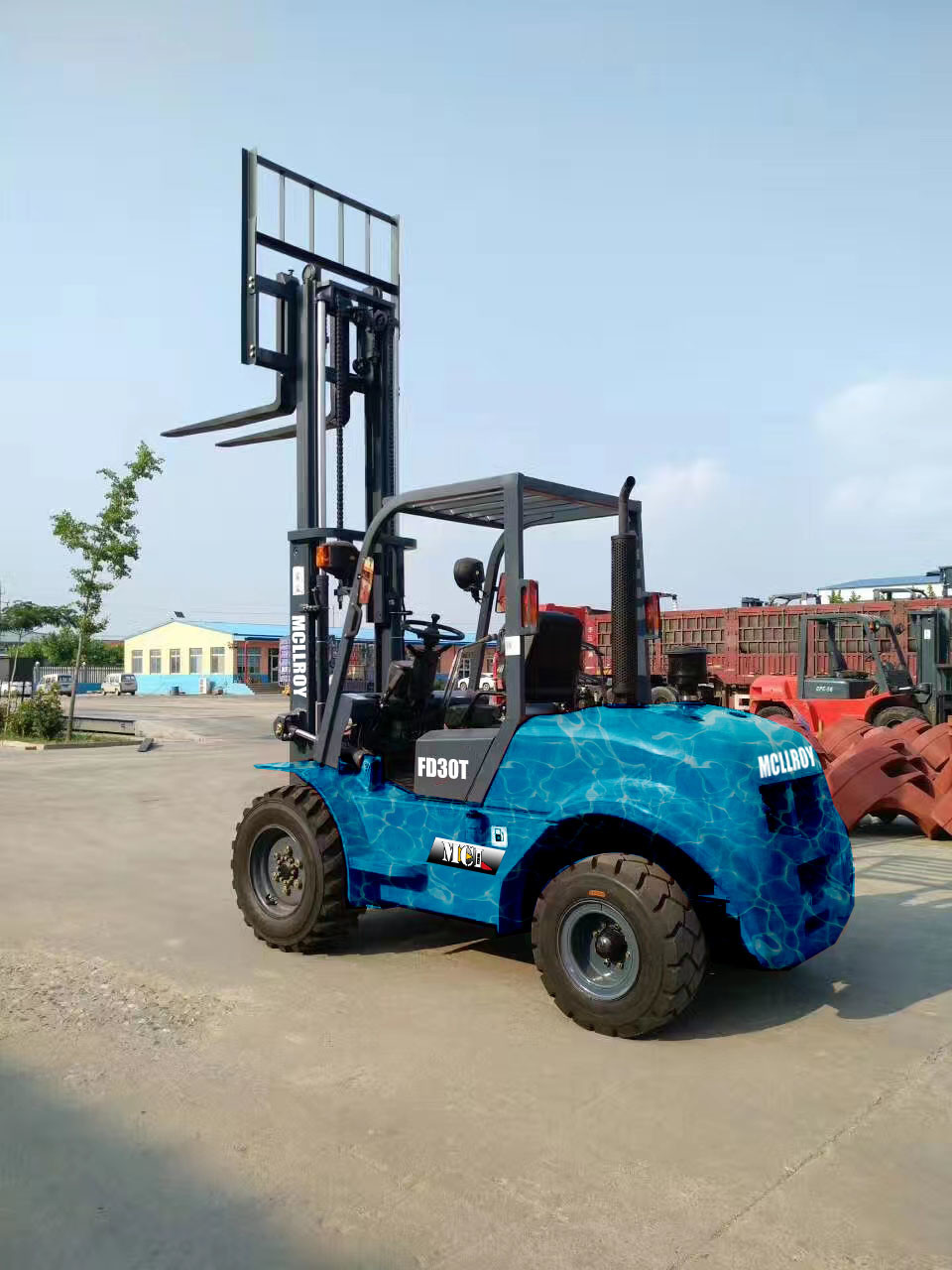

1. Products Description
When the going gets ‘rough’ these workhorse-like machines provide the Ideal solution, especially working in natural terrain and disturbed terrain construction sites. Enjoy greater manoeuvrability and accessibility in less favourable applications, thanks to their large heavy-duty pneumatic cushion tires, ensuring easier navigation through rough terrain.
For more arduous applications, MCLLROY-Forklift two and four wheel drive Rough Terrain Forklifts provide a perfect solution. Designed to excel in demanding outdoor applications, whilst providing ultimate driver comfort, our robust rough terrain forklifts guarantee maximum performance, no matter how hard the conditions are.
2. Specification
| Specification | FD30T-4WD | FD30T - 2WD |
| Rate Loading Weight | 3000 KG | 3000 KG |
| Mast Stage | 2 Normal /2 Fully free/3 Fully free | 2 Normal /2 Fully free/3 Fully free |
| Lifting Height | 3000/4000/4500/5000/6000/6500mm | 3000/4000/4500/5000/6000/6500mm |
| Engine Model | XinChai 490 BPG/Mitsubishi S4S/Isuzu C240 | XinChai 490 BPG/Mitsubishi S4S/Isuzu C240 |
| Rate Power | 36.8/35.3/35.4 KW | 36.8/35.3/35.4 KW |
| Transimission | Hydraulic Manual /Auto 2R,0,2F | Hydraulic auto 1R,0,1F |
| Fork Size | 920/1070/1220/1500 mm | 920/1070/1220/1500 mm |
| Tire Type | Air / Solid | Air / Solid |
| Front Tire | 12-16.5-10PR | 12-16.5-14PR |
| Rear Tire | 12-16.5-10PR | 27x10-12-12PR |
| Overhead Guard Height | 2450 mm | 2210 mm |
| Overall Length(with / without fork) | 4160 /3090 mm | 2940 mm |
| Overall Width | 1600 mm | 1550 mm |
| Overall Height (Mast extended/lowered) |
3000mm : 4350/2235 mm | 3000mm : 4350/2185 mm |
| Total Weight | 4900 KG | 4900 KG |
| Angle of Mast inclination (forward /backward) |
6°/12° | 5°/15° |
| Load Center | 500 mm | 500 mm |
| Minimum Ground Clearance(no-loading) | 250 mm | Mast point: 220 mm Wheel base center point: 310 mm |
| Wheel Base | 1840 mm | 1850 mm |
| Wheel Track | Front: 1250 mm Rear: 1320 mm |
1250/1205 mm |
| Minimum Turning Radius | 3960 mm | 2910 mm |
| Max.Travel Speed(no-loading) | 30 km/h | 22 km/h |
| Max. Lifting Speed(full/no-Loading) | 450 / 550 mm/s | 440 mm/s |
| Max. Descending Speed | Full-loading ≤ 600 mm/s No-loading ≥ 300 mm/s |
Full-loading ＜ 600 mm/s No-loading ＞300 mm/s |
| Maximum Permissible Gradient(full loading) | 25 ° | 16 ° |
| Battery | 12V/80Ah*2 | 12V/80Ah |
| Fuel Tank | 80 L | 80 L |
3. Details and Advantages
The MCLLROY Rough Terrain Forklifts offer a load of benefits:
Excellent for transporting items across rocky, hilly, or unstable surfaces
Easy to use for maximum performance
Accurate steering response for precise lifting and driving
Improved shock absorbers and full floating seat for enhanced comfort
Tough and compact for driving on rough terrain surfaces
4.Production lines:
A complete production process mainly includes: material procurement-steel plate cutting-welding-spray painting -drying-assembly-inspection
Steel plate cutting:
The cutting of the steel plate is closely related to the drawing design, workers' technique and cutting equipment.
Normally there are three types of cutting machines, you can see from the pictures here.
Flame cutting is used for iron plates over 40mm thick.
While plasma cutting is for steel plate that in between 20-40mm.Effectively process metal thickness of 0.3mm or more thermal processing(cutting, welding, brazing, hardening, painting, etc.)
Laser cutting is for steel plate between 8-20mm.
It is great for cutting that requires high precision. For example, cutting steel components for bumper, hood, and driver's cab. The advantages of laser cutting are: low temperature, so the plate is not likely deformed; the disadvantage is that it consumes a lot of power.
When the steel sheet is uneven or the cutting speed is not steady, a melting point or break-point will form; so during the cutting process, workers need to go back and forth to check.
5. Optional Configurations
| 1 | Solid tires (the Advanced brand or equivalent) |
|||
| 2 | Automatic transmission(1-4.5Ton) | |||
| 3 | Sideshift | |||
| 4 | Thicken Toyota seat (no shock absorber) | |||
| 5 | Toyota seat (with shock absorber) | |||
| 6 | Fork positioner | |||
| 7 | Closed cab | |||
| 8 | Double front tires(1-5Ton) | |||
| 9 | Normal double mast:3300-4000mm. | |||
| 10 | Full free double mast:3000-4000mm. | |||
| 11 | Full free triplex mast:4500-7500mm. | |||
| 12 | Fork length:920/1370/1550 mm | |||
| 13 | Extension fork | |||
6. Explosive View Of Main Parts
| No | Part No | Description | Q'ty | Remark |
| A | FD20-35-C1053 | Inching valve assembly | 1 | |
| 1 | FD20-35-C1187 | Snap ring | 2 | |
| 2 | FD20-35-C1188 | Body,valve | 1 | |
| 3 | FD20-35-C1189 | Spool | 1 | |
| 4 | FD20-35-C1190 | Plunger | 1 | |
| 5 | FD20-35-C1191 | O-ring | 1 | |
| 6 | FD20-35-C1192 | Seal,oil | 1 | |
| 7 | FD20-35-C1193 | Plug | 2 | |
| 8 | FD20-35-C1194 | Spring | 1 | |
| 9 | FD20-35-C1195 | Spring | 1 | |
| 10 | FD20-35-C1196 | Spacer | 1 | |
| 11 | FD20-35-C1197 | Seal,oil | 1 | |
| 12 | FD20-35-C1198 | Plug,choke | 1 |
